Mobile AI Kit

Overview

Dimension drawings for the Mobile AI Kit, in its minimum and maximum configurations.

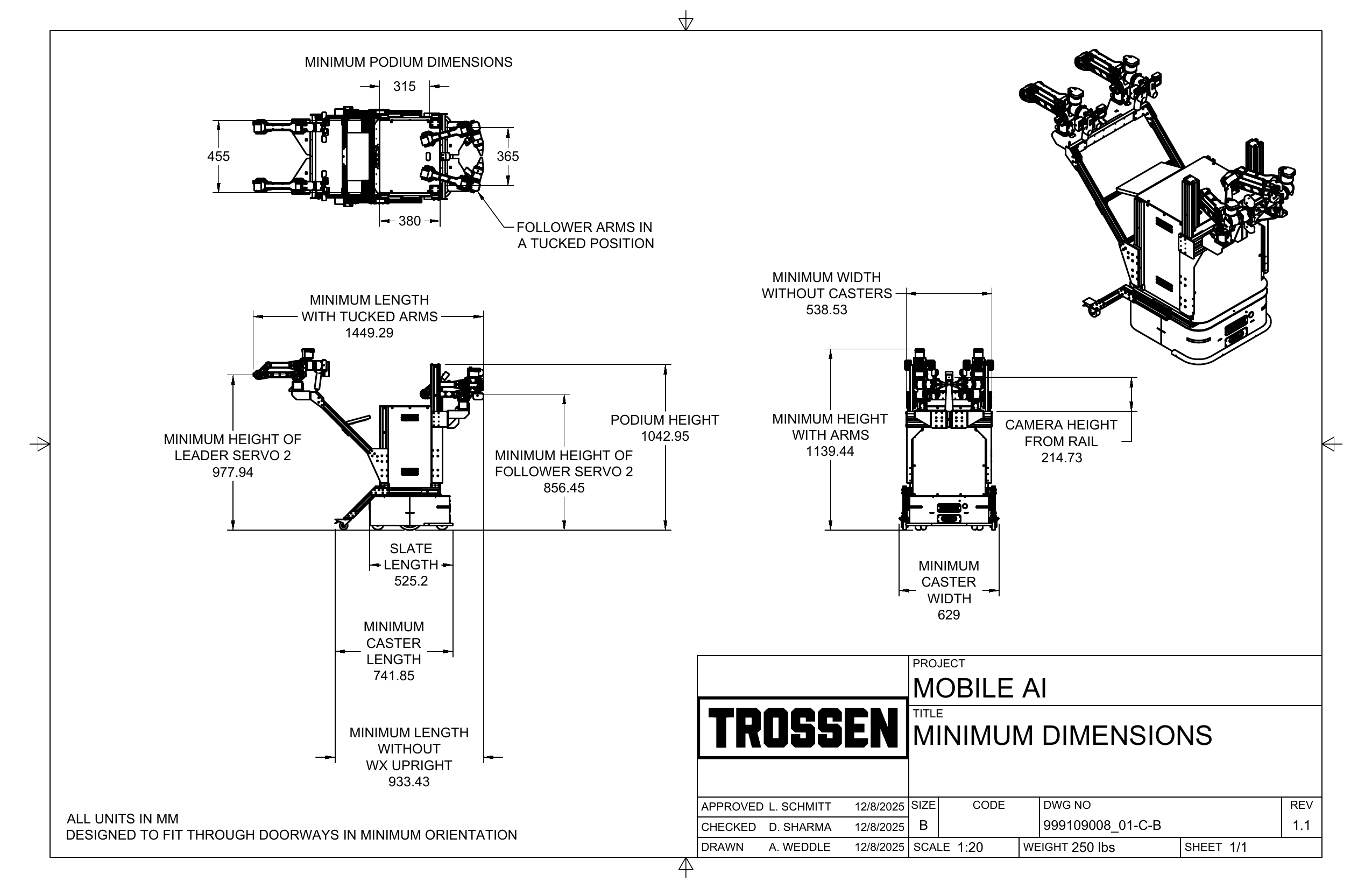

Minimum Configuration

Mobile AI Kit Minimum Configuration

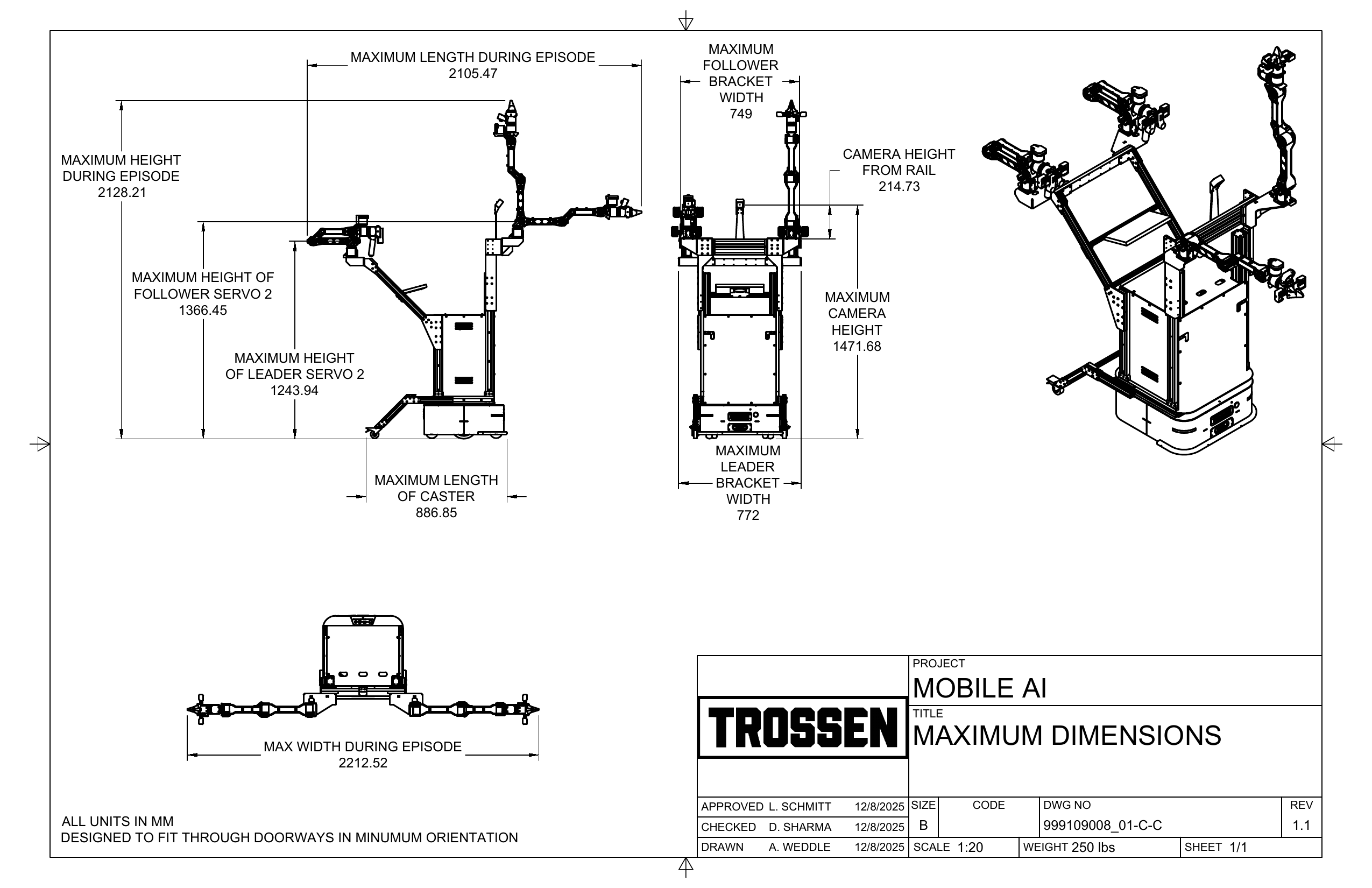

Maximum Configuration

Mobile AI Kit Maximum Configuration
